1960 Lesabre project
#1
1960 Lesabre project
Hello Buick Forum! I recently got my mitts on my first Buick.

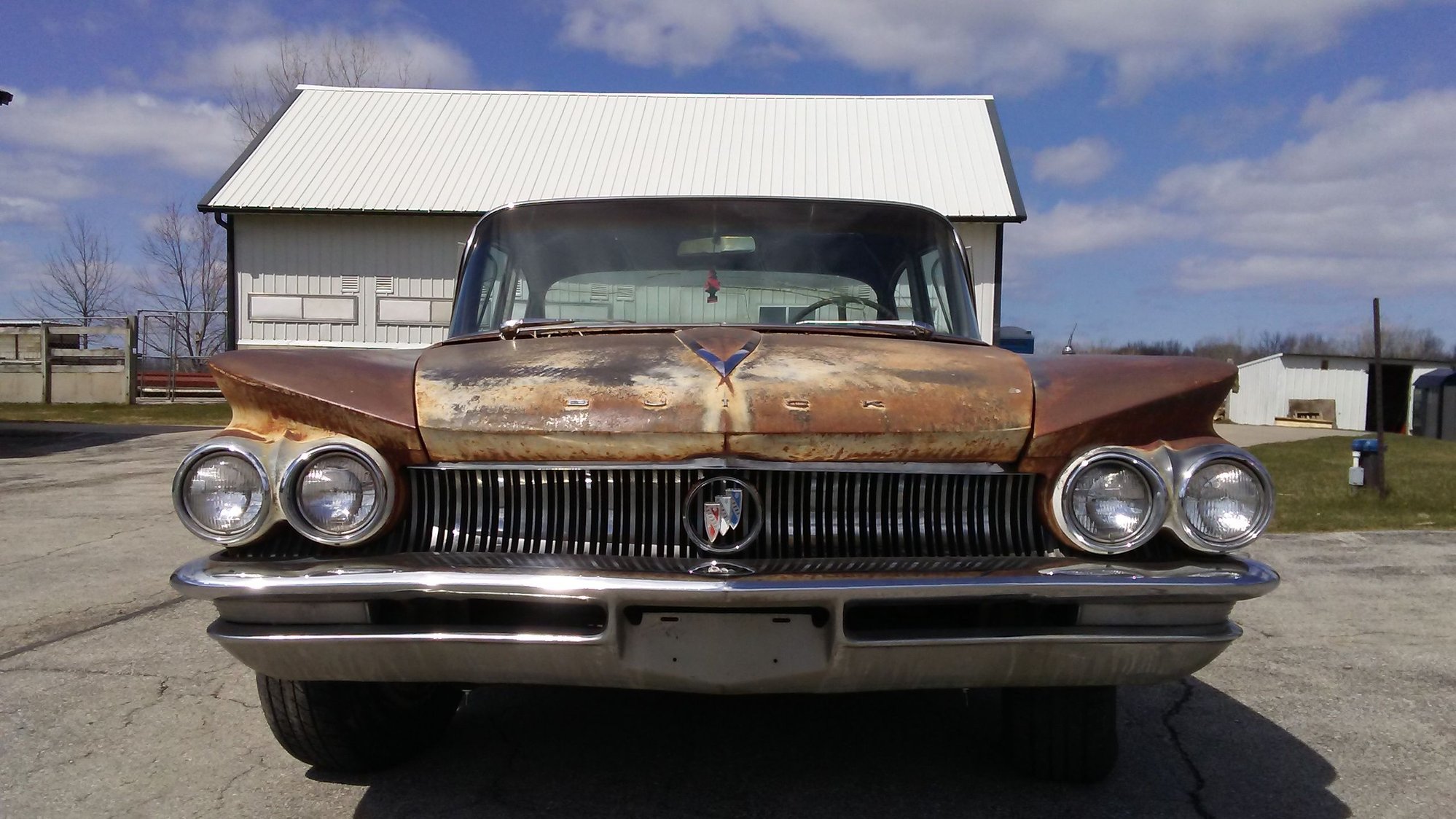

It's a 1960 Lesabre. It didn't run when I bought it but was complete. All the trim and interior, complete with about a thousand mice.

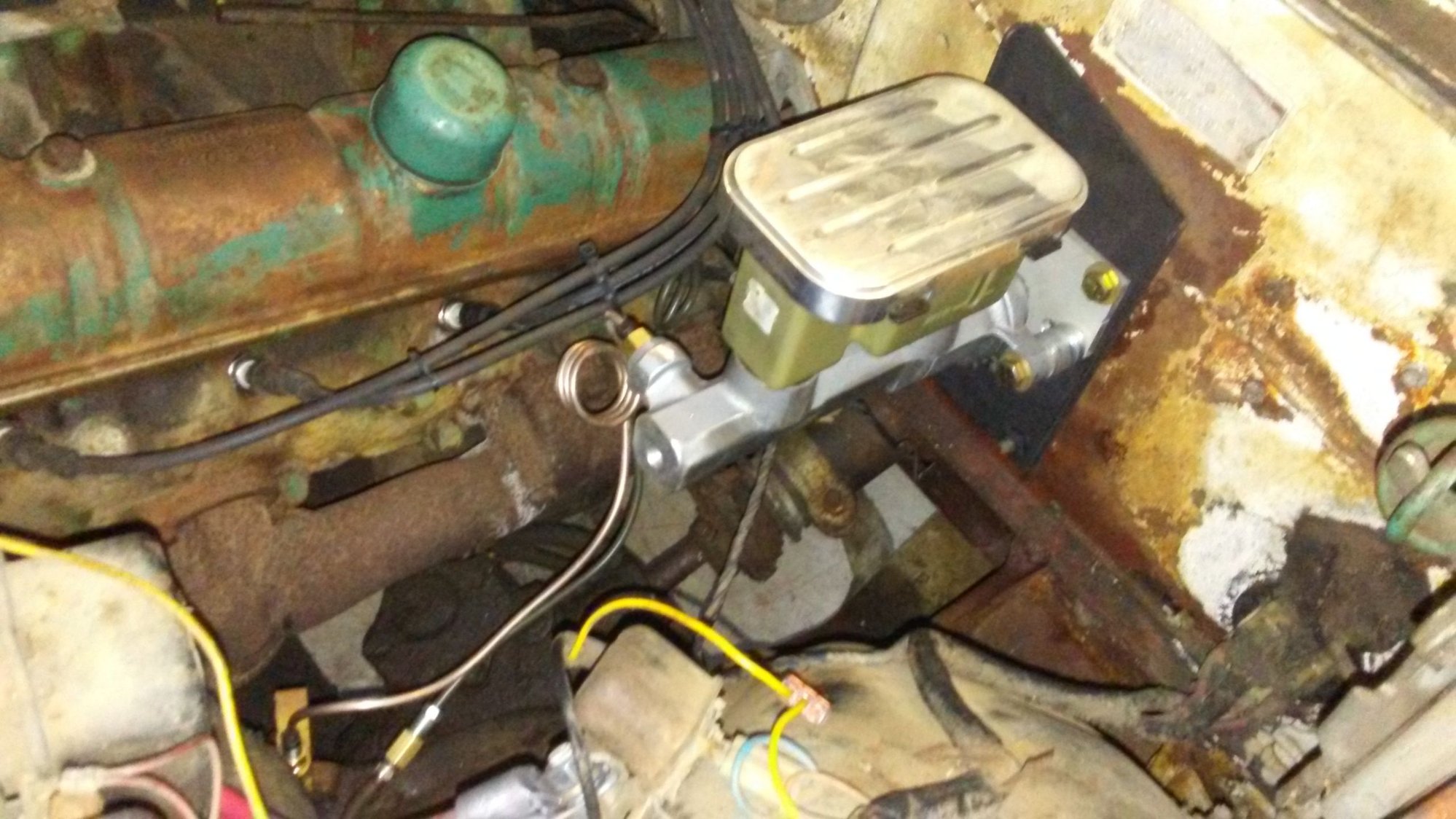

I've wanted to get a big four door for a while now, and I couldn't pass up the Patina on this one. So far I've cleaned the car up a little, swapped the single pot master cylinder for a dual circuit I had left over from another project and swapped the generator for a GM 3 wire alternator.
My goal is to leave the body exactly how it is, but make the interior super comfortable. That means new door panels, head liner, carpet, seats , Am/Fm radio, and a completely restored dash. I plan to add a tach, water temp gauge, and oil pressure gauge. I just need to find a way that doesn't look too ricey.

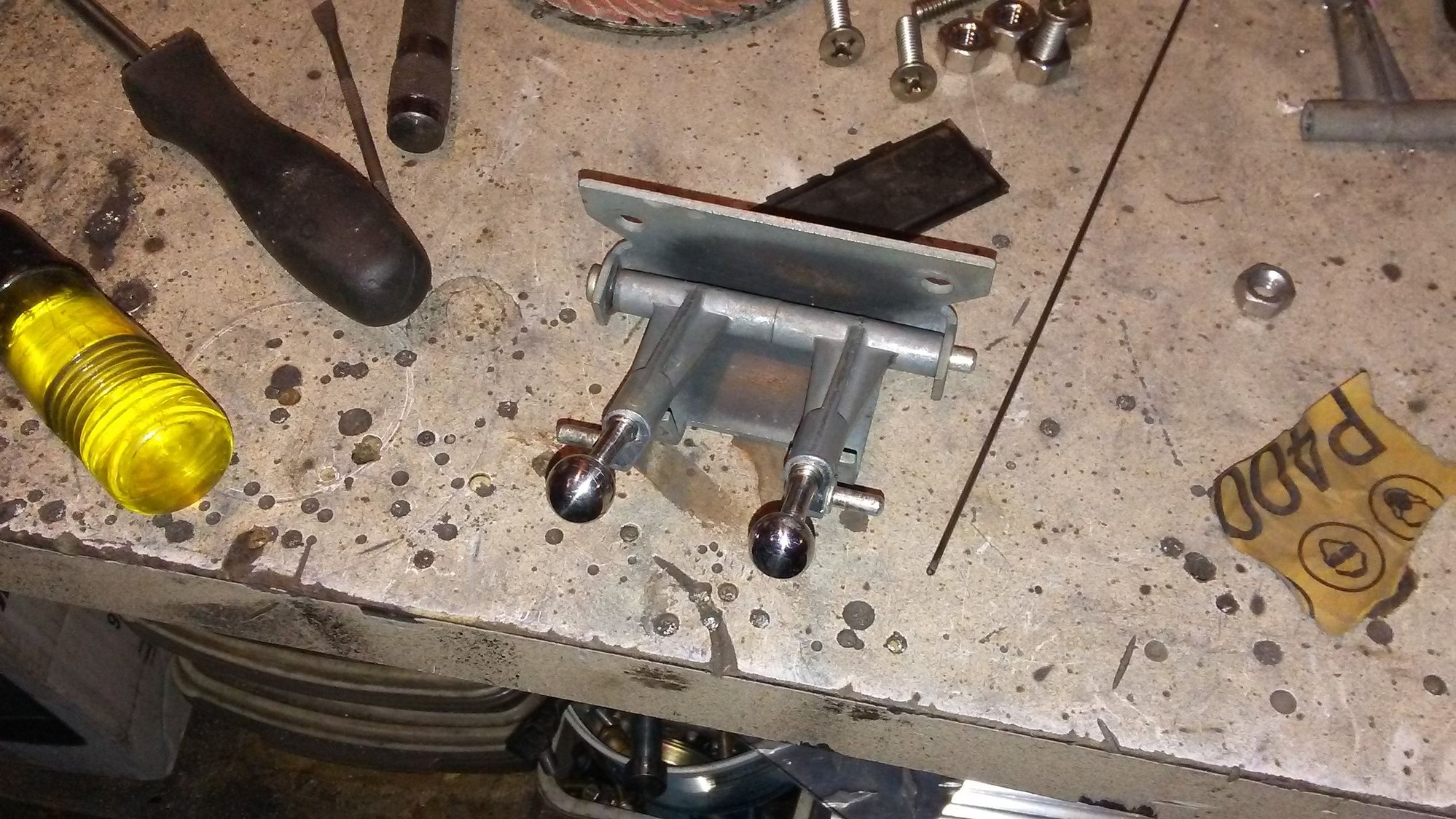

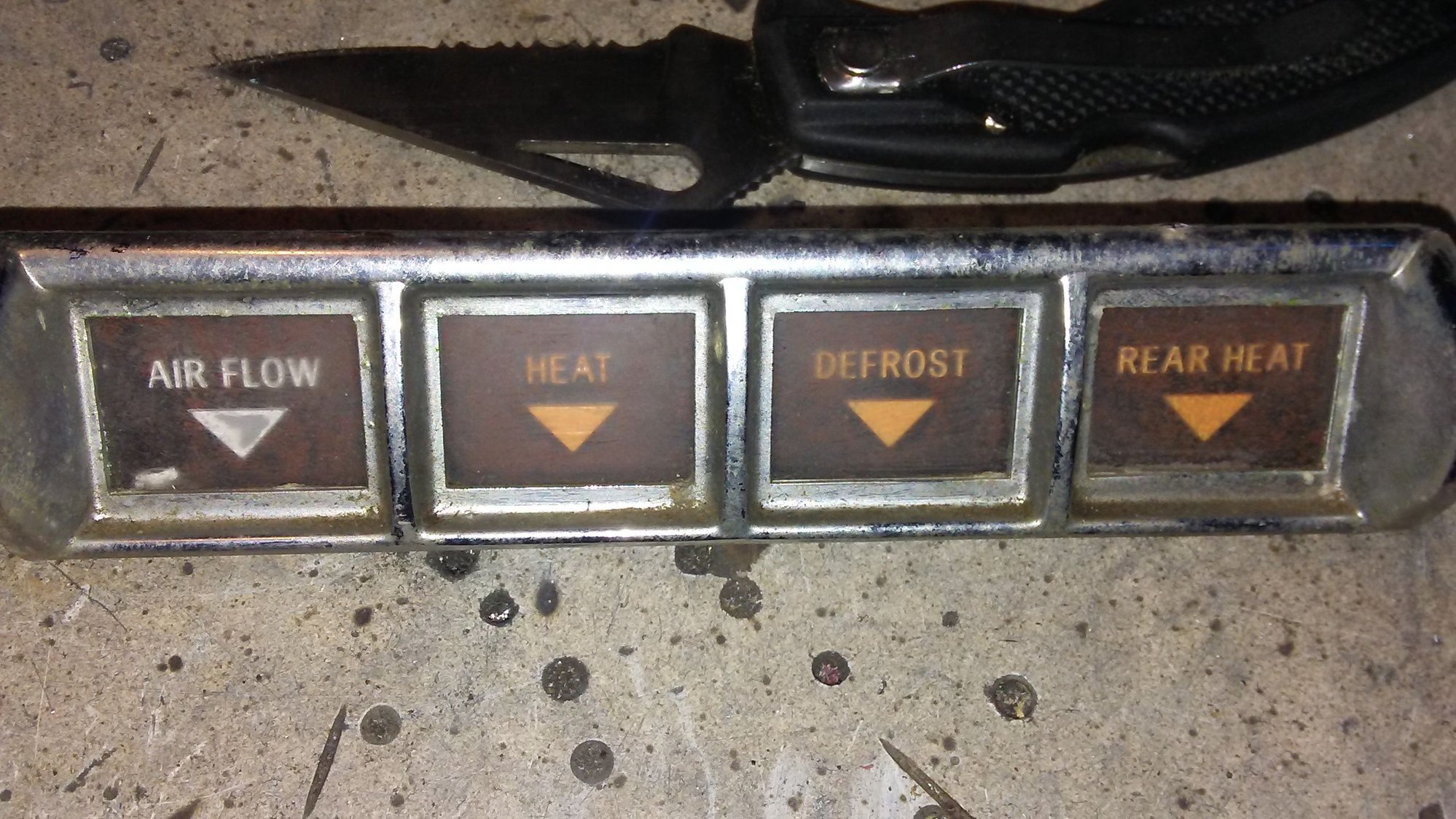

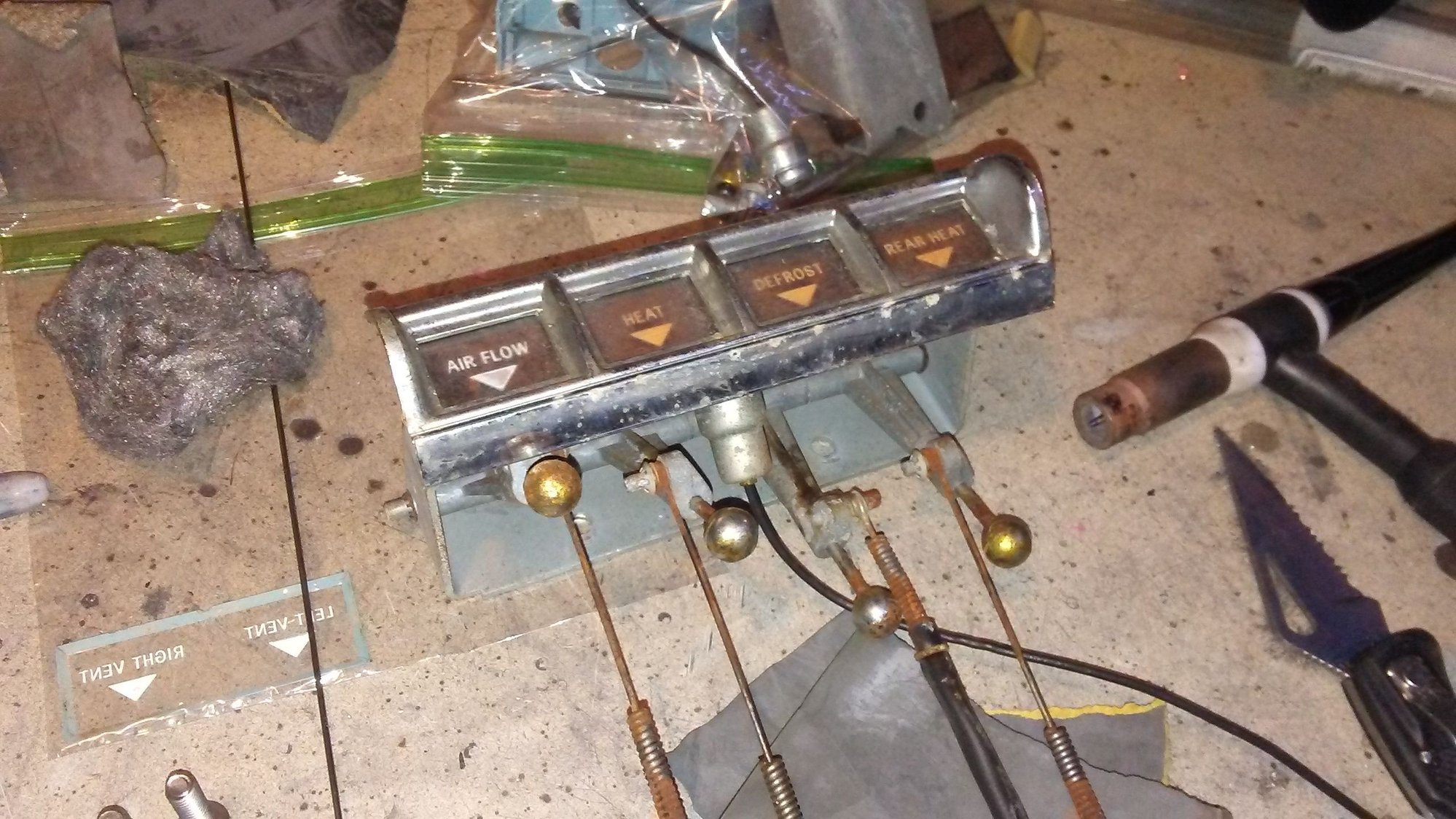

The first dash part I attacked was the adjustment levers for the climate controls. The chrome is dull, the plastic lenses are faded, and the black backing plate is rusty.
The solution was to remove the rusted beyond salvage ***** and replace them with stainless steel replicas, as I have no ability to have parts chromed.

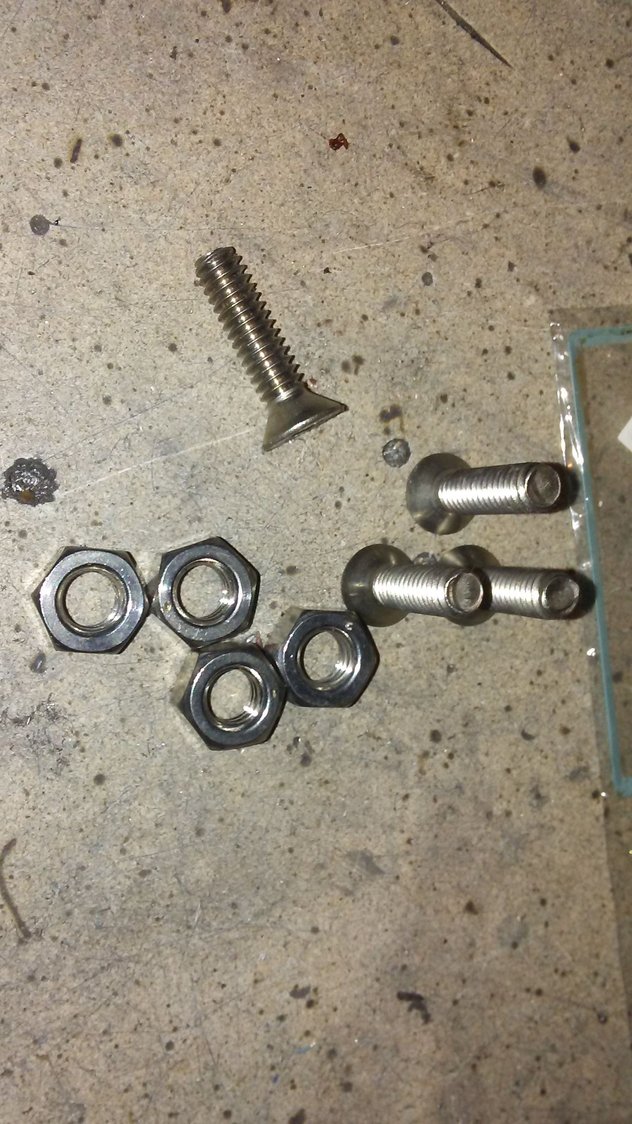

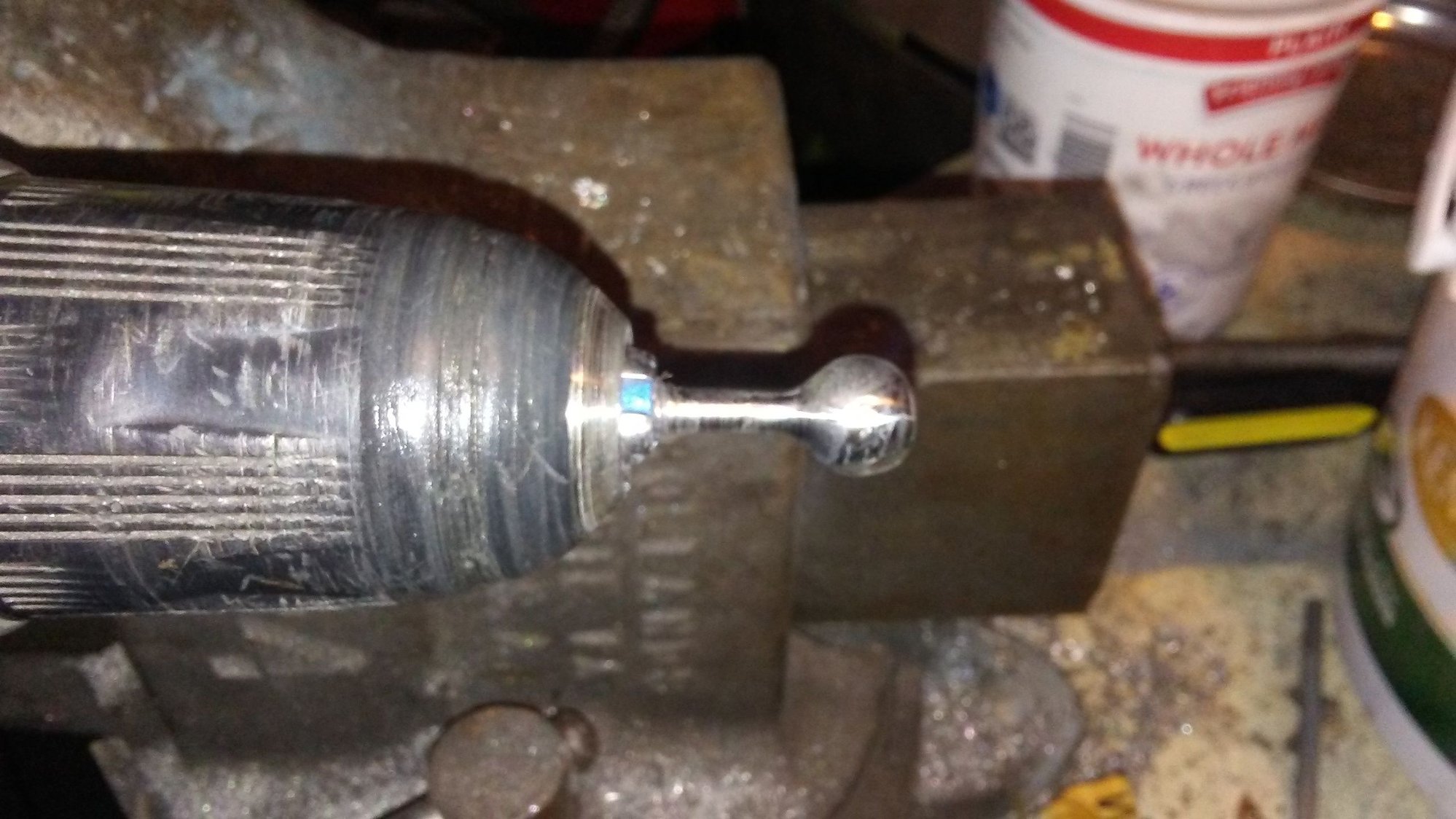

I took a 1/4-20 stainless bolt, TIG welded a stainless nut on the end and filled in the nut with filler.
I ten used a rill and a file to make the rough shape and polished the pieces.
Here is the Radio I got from Classic car stereos. Should be a nice addition when paired with front and rear speakers, maybe a small sub.

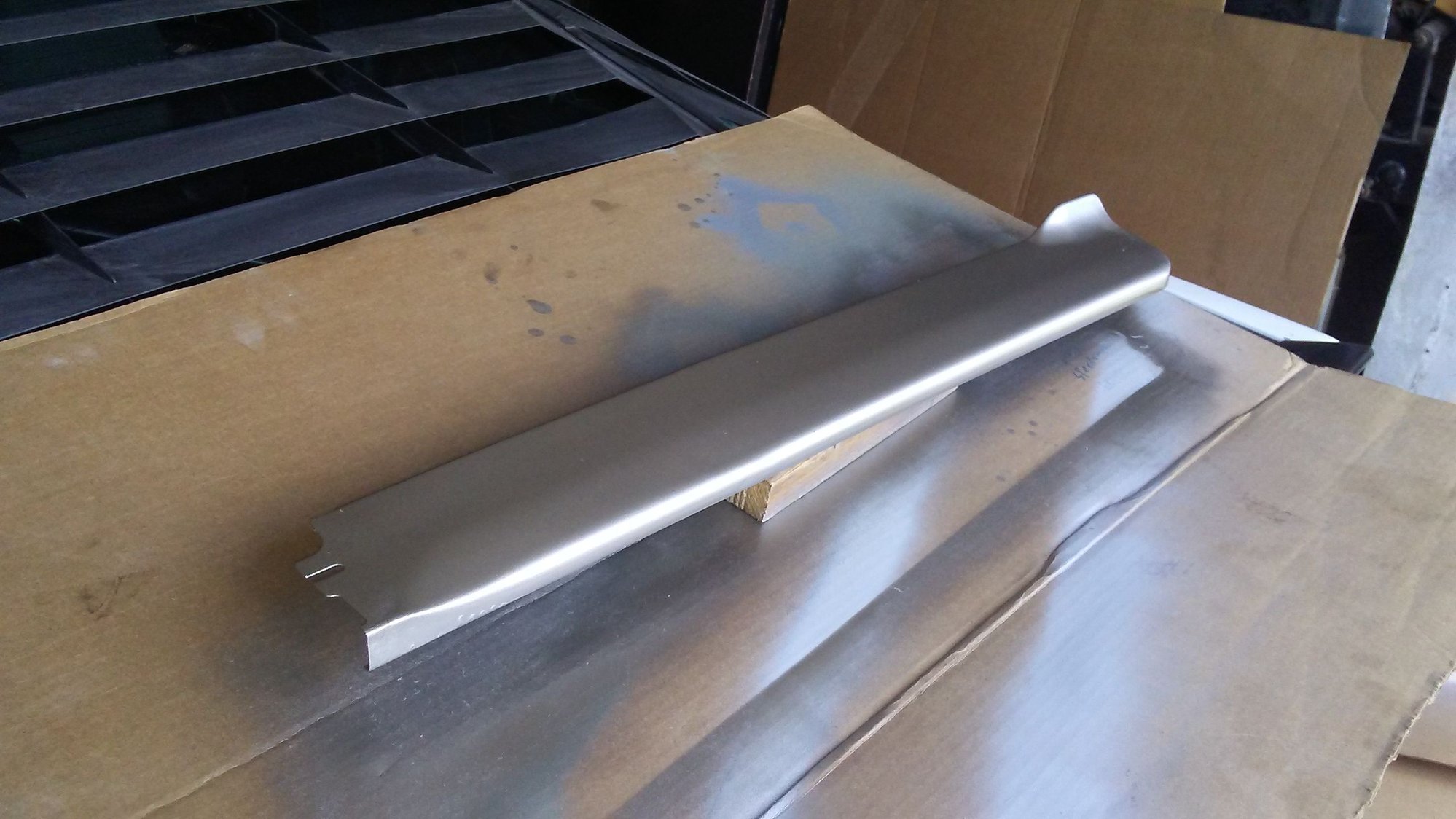

Here is the flint metallic paint I am painting the interior panels. It is very similar to the color they were, minus the rust.
It's a 1960 Lesabre. It didn't run when I bought it but was complete. All the trim and interior, complete with about a thousand mice.
I've wanted to get a big four door for a while now, and I couldn't pass up the Patina on this one. So far I've cleaned the car up a little, swapped the single pot master cylinder for a dual circuit I had left over from another project and swapped the generator for a GM 3 wire alternator.
My goal is to leave the body exactly how it is, but make the interior super comfortable. That means new door panels, head liner, carpet, seats , Am/Fm radio, and a completely restored dash. I plan to add a tach, water temp gauge, and oil pressure gauge. I just need to find a way that doesn't look too ricey.
The first dash part I attacked was the adjustment levers for the climate controls. The chrome is dull, the plastic lenses are faded, and the black backing plate is rusty.
The solution was to remove the rusted beyond salvage ***** and replace them with stainless steel replicas, as I have no ability to have parts chromed.
I took a 1/4-20 stainless bolt, TIG welded a stainless nut on the end and filled in the nut with filler.
I ten used a rill and a file to make the rough shape and polished the pieces.
Here is the Radio I got from Classic car stereos. Should be a nice addition when paired with front and rear speakers, maybe a small sub.
Here is the flint metallic paint I am painting the interior panels. It is very similar to the color they were, minus the rust.
#2
I can really appreciate what you are doing.
It is always nice to see a "Craftsman" at work. nice work !
Keep us informed on your progress, I know it will be a learning experience for us, thanks.
Where did you find that Gem <(The car)?
It is always nice to see a "Craftsman" at work. nice work !
Keep us informed on your progress, I know it will be a learning experience for us, thanks.
Where did you find that Gem <(The car)?
#6

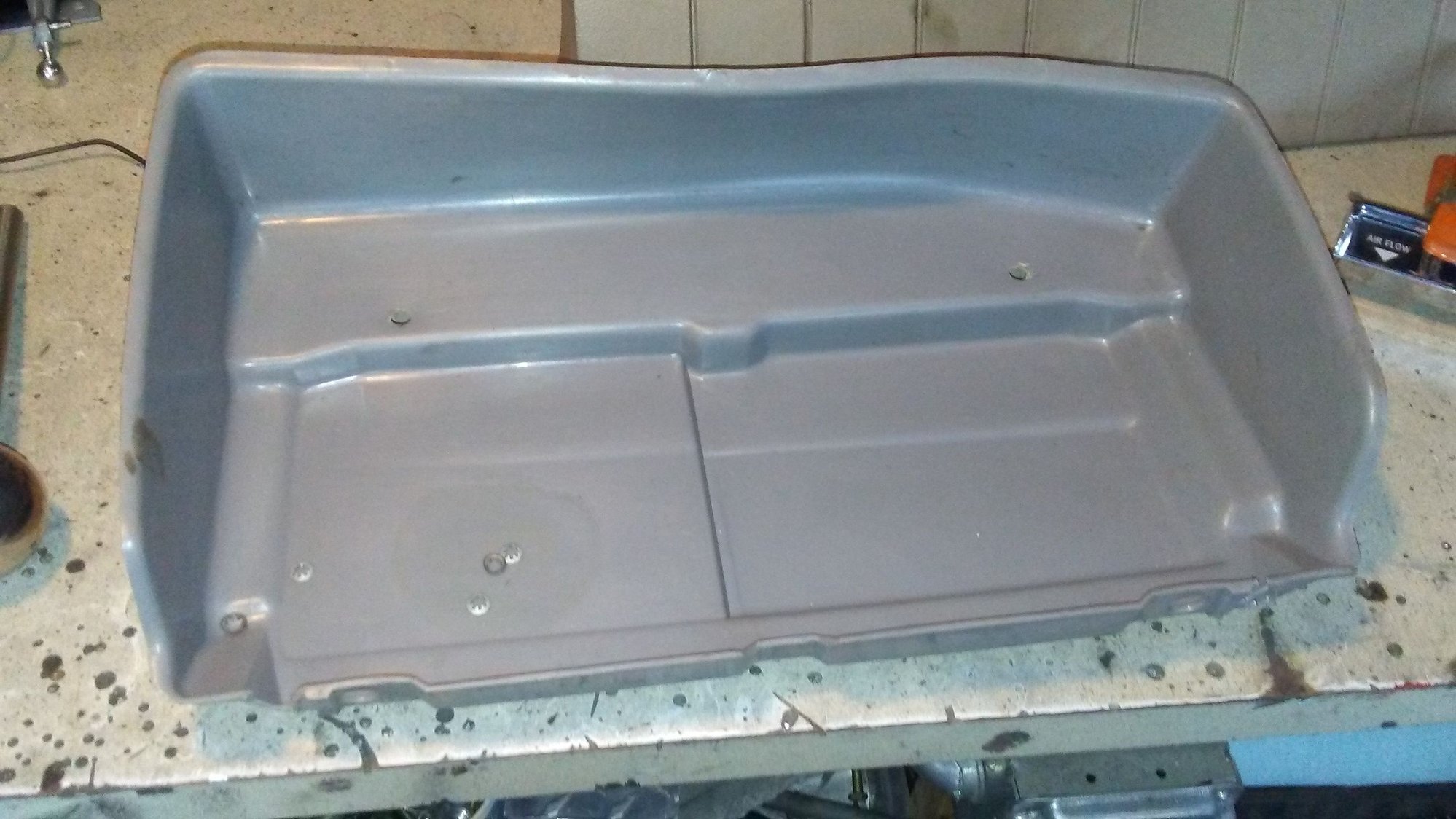

It's been a little while since I dropped an update, so I figured I would. I cleaned out the gas tank and painted it. Fuel pump. sending unit, filter and rubber lines all needed replacement.

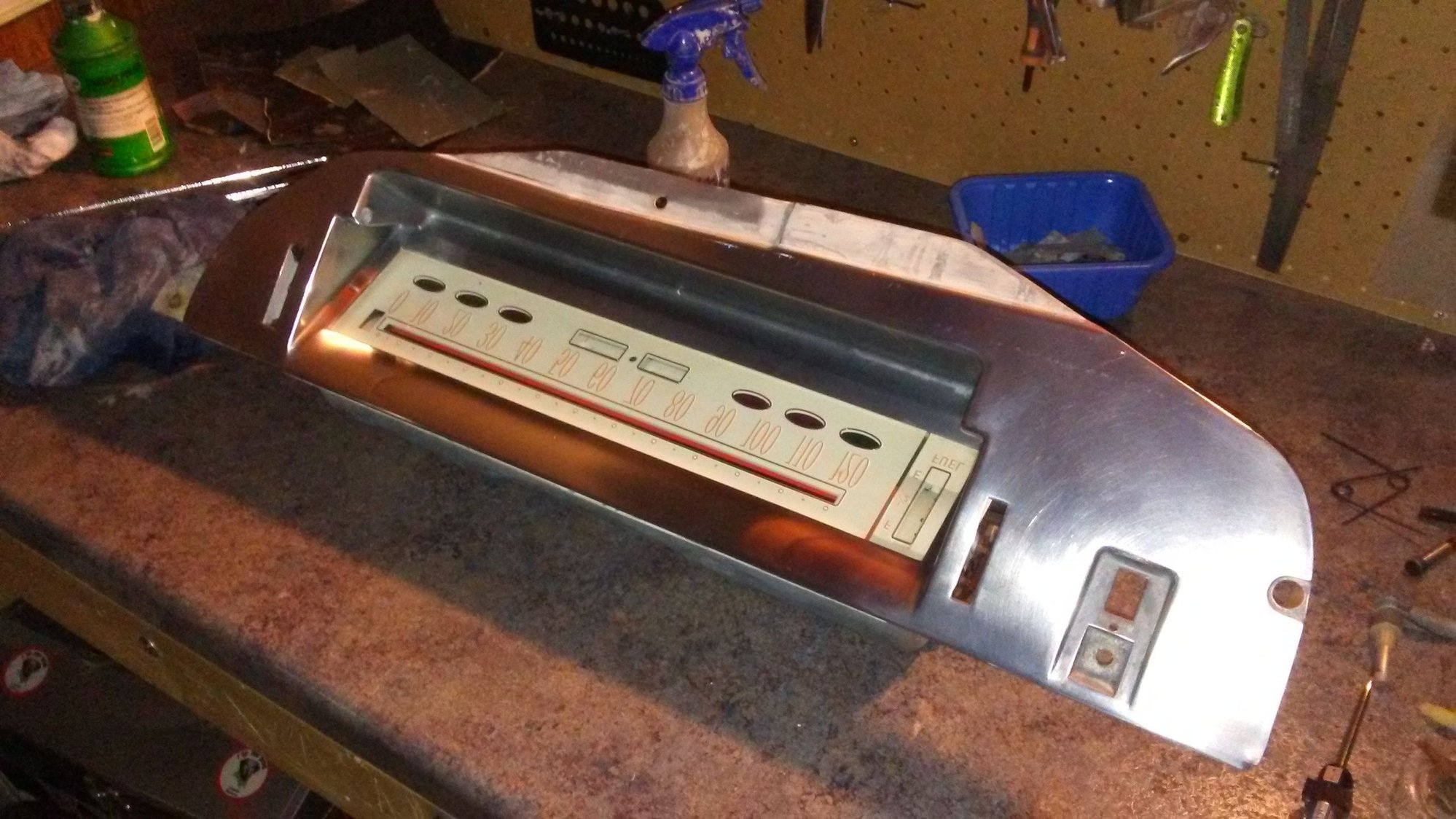

Cleaned up the guage bezel and started polishing the aluminum.
Threw in the Fast and Furious guages, as you do. 40psi oil pressure.
I've arranged access to a 2 post lift, so exhaust comes soon!
Cleaned up the guage bezel and started polishing the aluminum.
Threw in the Fast and Furious guages, as you do. 40psi oil pressure.
I've arranged access to a 2 post lift, so exhaust comes soon!
